HullSonic HS200 Ultrasonic Anti-fouling System – 2 Transducers

Original price was: $1,360.00.Current price is: $1,300.00.

The HullSonic™ HS200 provides 2 Transducers at 50W Peak of ultrasonic power per Transducer (100W). The HS200 is designed to protect vessels up to 32′ / 10m in length.

SKU: HS200 Category: Tags: , , ,

Description

HullSonic HS200 provides 2 x 50W outputs and generates up to 100W of ultrasonic acoustic energy. With two transducer outputs, the system is engineered as a stand-alone system for effective protection for vessels up to 32′/10m in length.

100 Watts of Power (50W per channel)

The system is capable of generating 50 Watts of signal output per channel (100W total). The Ultrasonic acoustic sonication disrupts fouling attachment, growth, and reproduction.

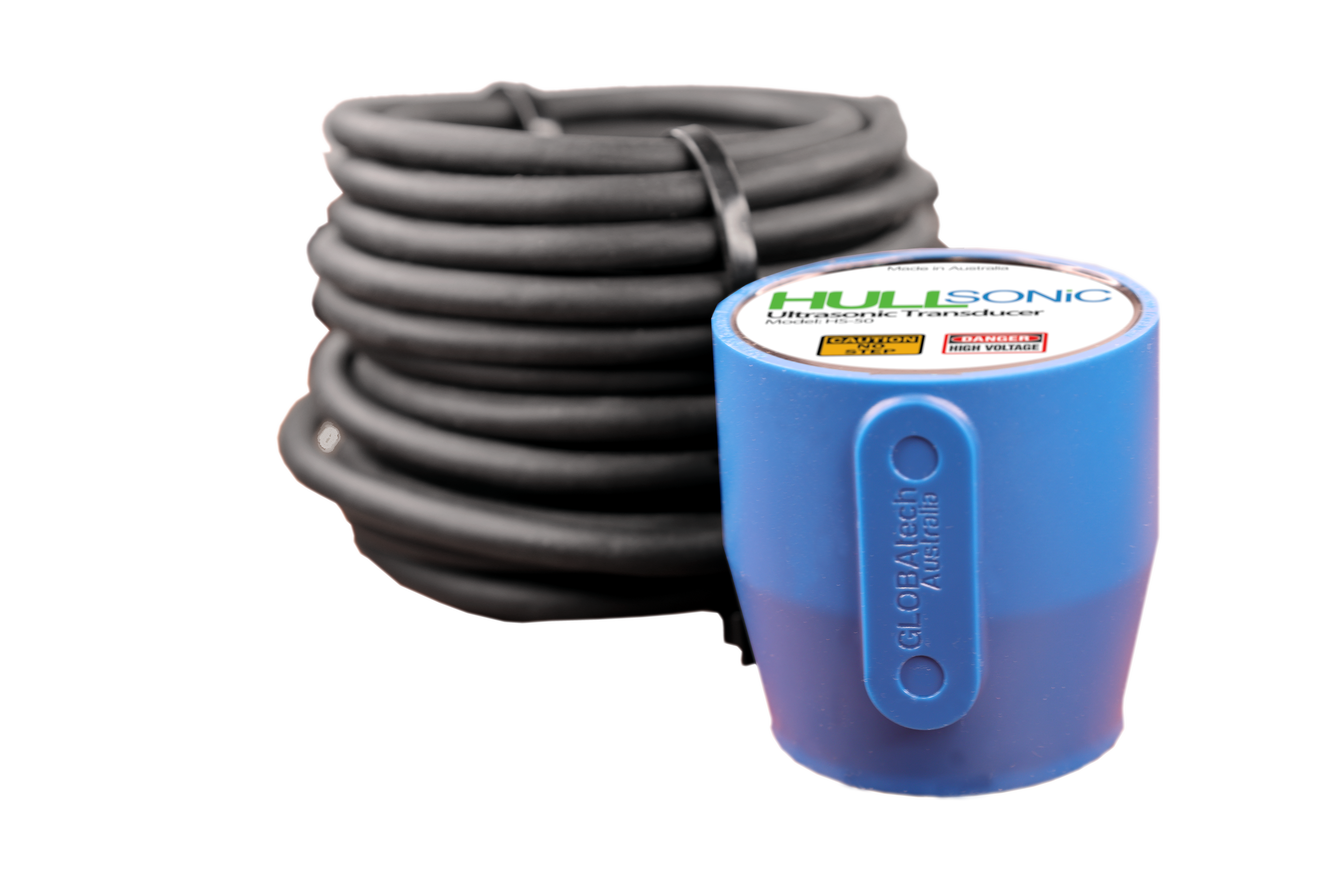

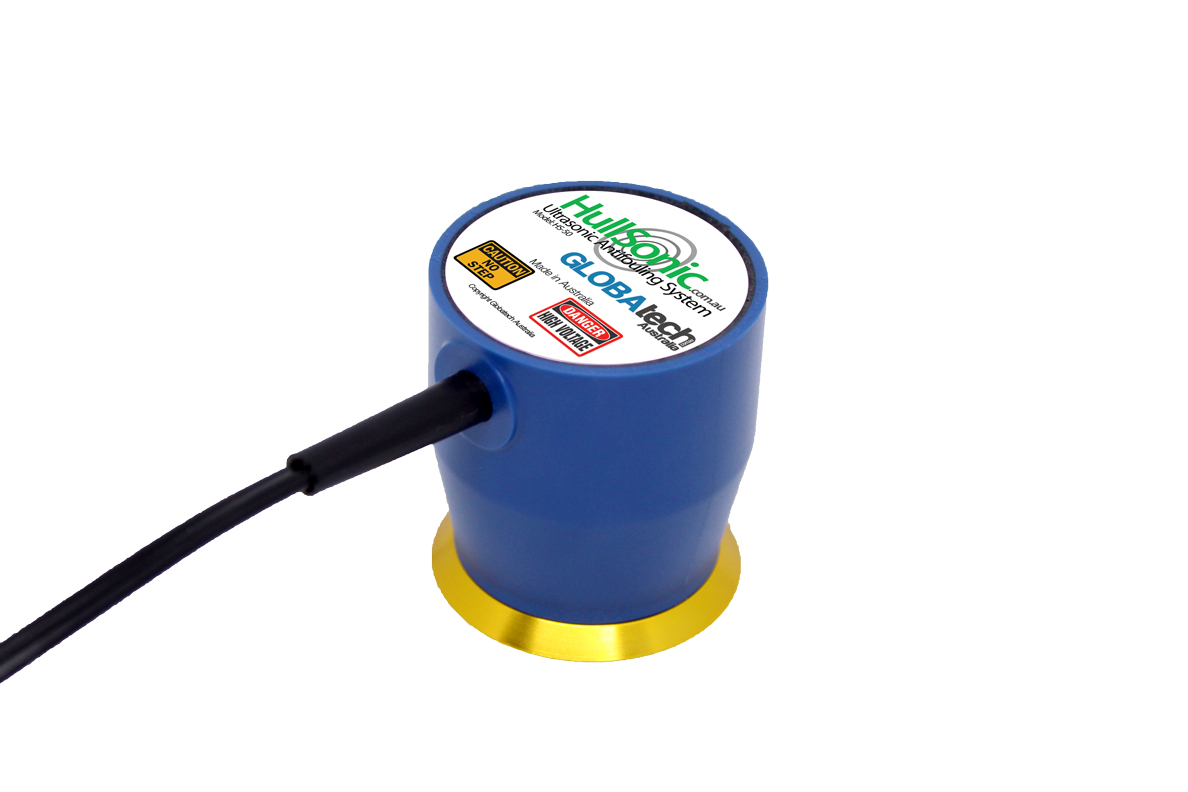

2 Ultrasonic Transducers (Emitters)

This system is equipped with two ultrasonic transducers that are used to generate the ultrasonic energy, this energy will emanate through the protected surfaces and disrupt marine fouling.

ECONOMY / STANDARD & BOOST Modes Mode

This HullSonic system provides a convenient low power mode (ECO) for use with solar & wind power supplies. While also retaining the STANDARD mode for normal operation & a BOOST mode for increased output, allowing you to manage your system as you see fit.

Package Includes:

  • 1 x HullSonic HS200 Control Module (2 x 50W Outputs).
  • 2 x Ultrasonic Transducers (HS-T50) each with 23ft(7m) of silicone rubber cable.
  • 2 x HullSonic Transducer mounting footprints.
  • 1 x Tube Loctite 515 Transducer gasket material.
  • 1 x 16ft (5m) silicon Rubber Battery Power Cable (pre-attached to the control module).
  • 1 x Transducer Installation Kit (JB Weld Epoxy Adhesive & mixer).
  • 1 x In-Line fuse and spare fuse kit.
  • 1 x Full color instruction manual.

Please Note: HullSonic ultrasonic anti-fouling systems are provided with 23ft of cable per transducer. Depending on boat size, you may require additional transducer cable to reach the transducer mounting location. Typically this can be extended using the off-cuts from other transducers installed closer to the control module, or using the same type of cable. Contact Us for assistance with extension advise. Lengths can be extended up to 80m.

This unit can also be combined with other Hull Sonic systems to extend protective range and/or anti-fouling intensity.

Additional information

Weight 3 kg
Product Code

HS200

Manufacturer

Globatech Australia

Product Name

HullSonic – HS200

Certifications

CE, FCC, C-tick, ROHS

Input Voltage

12VDC (Other Voltages AC/DC with Adapter)

Average Power

~3W per Transducer (STANDARD).

Peak Power

50W per Transducer.

Ultrasonic Module

1 piece

Transducer

2 piece

Frequency Output

19 – 70kHz – Auto-Calibrating

Control Box Rating

IP67

Transducer Rating

IP68

Transducer Cable

2 x 23ft / 7m Silicone Rubber Transducer Cable.

Package Weight

3Kg

Warranty

2 Years RTB
